APTM100UM45DAG

In Stock: 7,821

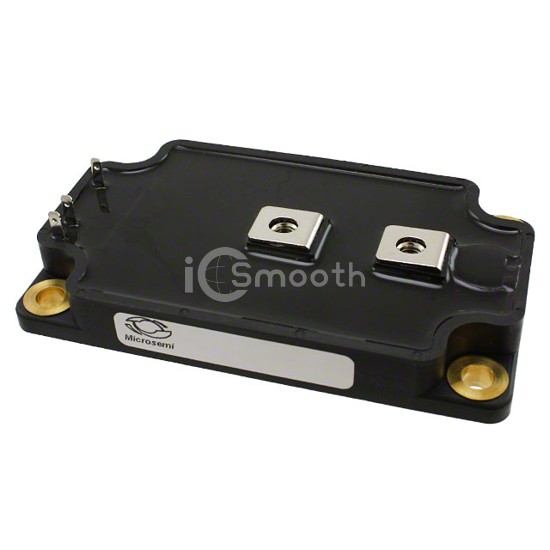

APTM100UM45DAG - Microchip Technology - Transistors - FETs, MOSFETs - Single
REF: APTM100UM45DAG Microchip Technology
APTM100UM45DAG

Microchip Technology

MOSFET N-CH 1000V 215A SP6

APTM100UM45DAG is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 1000V 215A SP6. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP6.

Datasheet Request a Quote

In Stock: 7,821

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1000 V
Current - Continuous Drain (Id) @ 25°C215A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs52mOhm @ 107.5A, 10V
Vgs(th) (Max) @ Id5V @ 30mA
Gate Charge (Qg) (Max) @ Vgs1602 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds42700 pF @ 25 V
FET Feature-
Power Dissipation (Max)5000W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Supplier Device PackageSP6
Package / CaseSP6
