APTGT75TA120PG

In Stock: 5,502

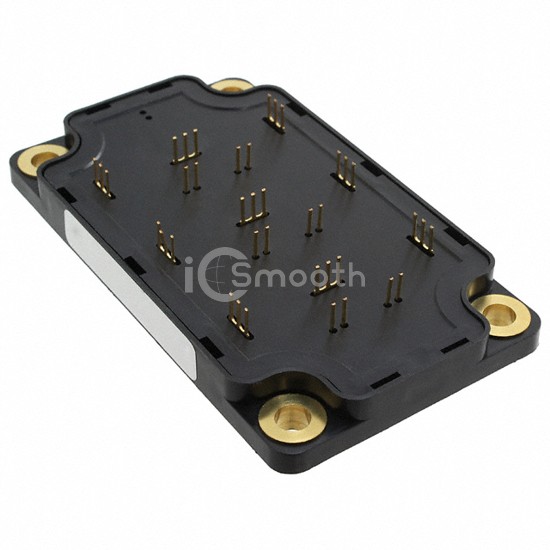

APTGT75TA120PG - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGT75TA120PG Microchip Technology
APTGT75TA120PG

Microchip Technology

IGBT MODULE 1200V 100A 350W SP6P

APTGT75TA120PG is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 100A 350W SP6P. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP6, current - collector (ic) (max) 100 A.

Datasheet Request a Quote

In Stock: 5,502

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Phase
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)100 A
Power - Max350 W
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 75A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce5.34 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP6
Supplier Device PackageSP6-P
