APTGT50H60RT3G

In Stock: 9,608

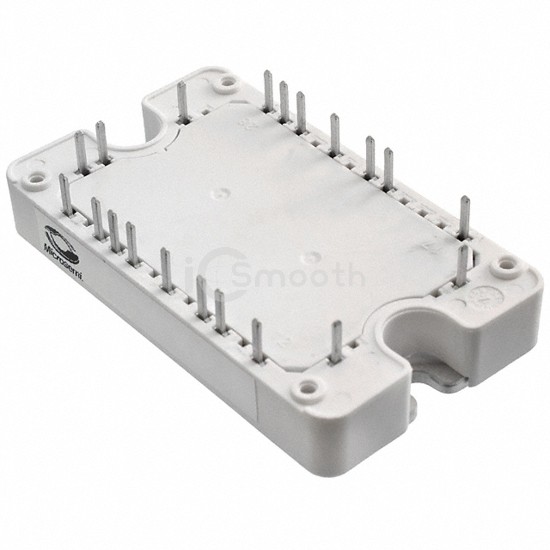

APTGT50H60RT3G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGT50H60RT3G Microchip Technology
APTGT50H60RT3G

Microchip Technology

IGBT MODULE 600V 80A 176W SP3

APTGT50H60RT3G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 600V 80A 176W SP3. Key specifications: mounting type Chassis Mount, package / case SP3, current - collector (ic) (max) 80 A, power - max 176 W.

Datasheet Request a Quote

In Stock: 9,608

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationFull Bridge Inverter
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)80 A
Power - Max176 W
Vce(on) (Max) @ Vge, Ic1.9V @ 15V, 50A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce3.15 nF @ 25 V
InputSingle Phase Bridge Rectifier
NTC ThermistorYes
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP3
Supplier Device PackageSP3
