APTGT75DA120TG

In Stock: 8,635

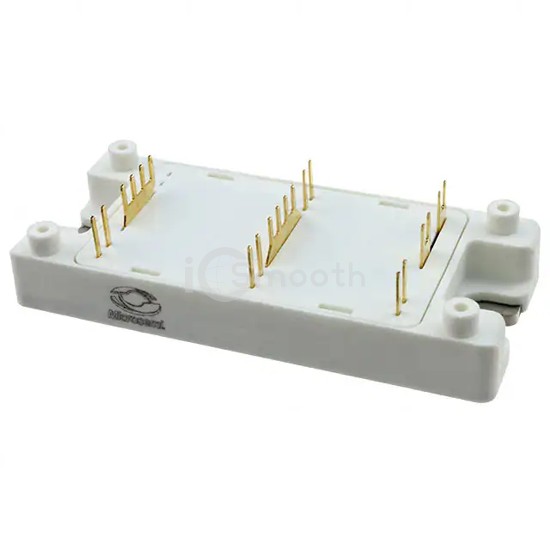

APTGT75DA120TG - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGT75DA120TG Microchip Technology
APTGT75DA120TG

Microchip Technology

IGBT MODULE 1200V 110A 357W SP4

APTGT75DA120TG is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 110A 357W SP4. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP4, current - collector (ic) (max) 110 A.

Datasheet Request a Quote

In Stock: 8,635

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)110 A
Power - Max357 W
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 75A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce5.34 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP4
Supplier Device PackageSP4
