APTGT600U170D4G

In Stock: 3

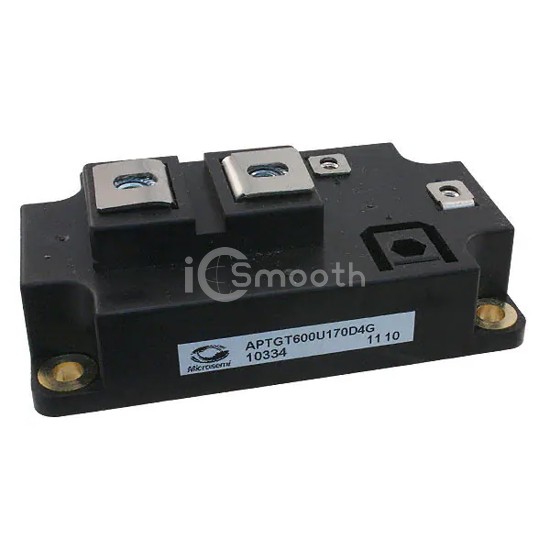

APTGT600U170D4G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGT600U170D4G Microchip Technology
APTGT600U170D4G

Microchip Technology

IGBT MODULE 1700V 1100A 2900W D4

APTGT600U170D4G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1700V 1100A 2900W D4. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case D4, current - collector (ic) (max) 1100 A.

Datasheet Request a Quote

In Stock: 3

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)1100 A
Power - Max2900 W
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 600A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce51 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseD4
Supplier Device PackageD4
