APTGT600A60G

In Stock: 4,083

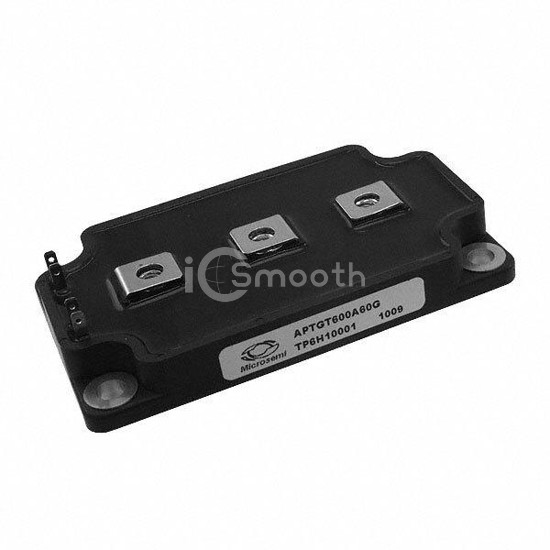

APTGT600A60G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGT600A60G Microchip Technology
APTGT600A60G

Microchip Technology

IGBT MODULE 600V 700A 2300W SP6

APTGT600A60G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 600V 700A 2300W SP6. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case SP6, current - collector (ic) (max) 700 A.

Datasheet Request a Quote

In Stock: 4,083

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)700 A
Power - Max2300 W
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 600A
Current - Collector Cutoff (Max)750 µA
Input Capacitance (Cies) @ Vce49 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP6
Supplier Device PackageSP6
