APTGT400A60D3G

In Stock: 1

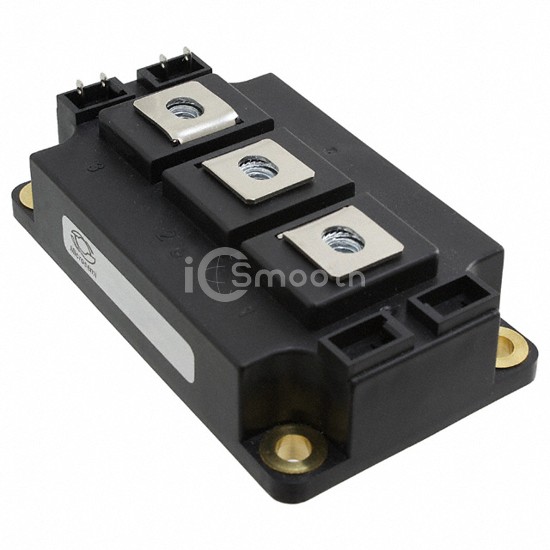

APTGT400A60D3G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGT400A60D3G Microchip Technology
APTGT400A60D3G

Microchip Technology

IGBT MODULE 600V 500A 1250W D3

APTGT400A60D3G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 600V 500A 1250W D3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case D-3 Module, current - collector (ic) (max) 500 A.

Datasheet Request a Quote

In Stock: 1

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)500 A
Power - Max1250 W
Vce(on) (Max) @ Vge, Ic1.9V @ 15V, 400A
Current - Collector Cutoff (Max)500 µA
Input Capacitance (Cies) @ Vce24 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseD-3 Module
Supplier Device PackageD3
