APTGT300SK60D3G

In Stock: 5

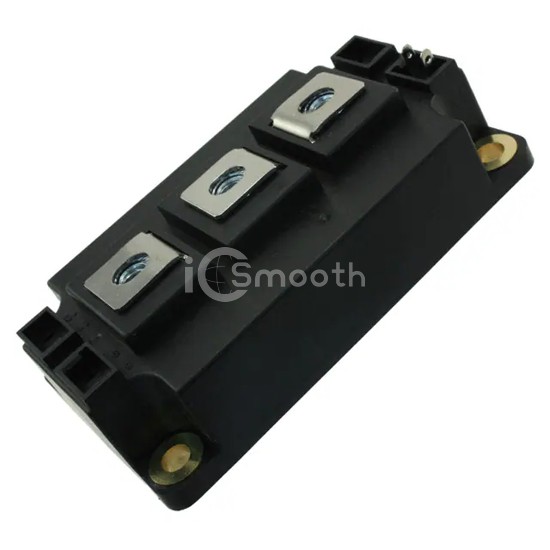

APTGT300SK60D3G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGT300SK60D3G Microchip Technology
APTGT300SK60D3G

Microchip Technology

IGBT MODULE 600V 400A 940W D3

APTGT300SK60D3G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 600V 400A 940W D3. Key specifications: mounting type Chassis Mount, package / case D-3 Module, current - collector (ic) (max) 400 A, power - max 940 W.

Datasheet Request a Quote

In Stock: 5

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)400 A
Power - Max940 W
Vce(on) (Max) @ Vge, Ic1.9V @ 15V, 300A
Current - Collector Cutoff (Max)500 µA
Input Capacitance (Cies) @ Vce18.5 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseD-3 Module
Supplier Device PackageD3
