APTGT300DU170G

In Stock: 4,077

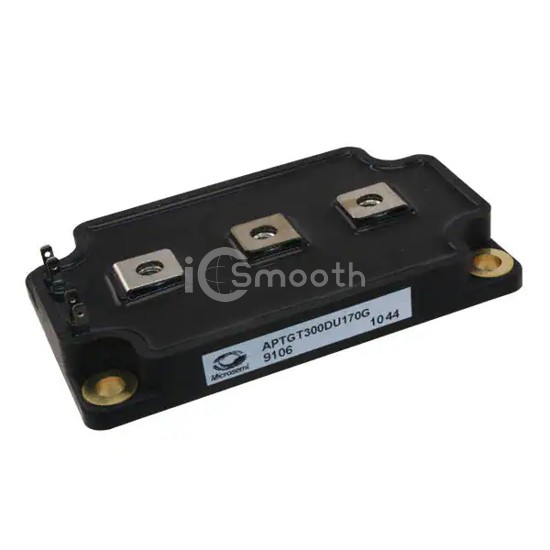

APTGT300DU170G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGT300DU170G Microchip Technology
APTGT300DU170G

Microchip Technology

IGBT MODULE 1700V 400A 1660W SP6

APTGT300DU170G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1700V 400A 1660W SP6. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP6, current - collector (ic) (max) 400 A.

Datasheet Request a Quote

In Stock: 4,077

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationDual, Common Source
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)400 A
Power - Max1660 W
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 300A
Current - Collector Cutoff (Max)750 µA
Input Capacitance (Cies) @ Vce26.5 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP6
Supplier Device PackageSP6
