APTGT300DA120G

In Stock: 7,646

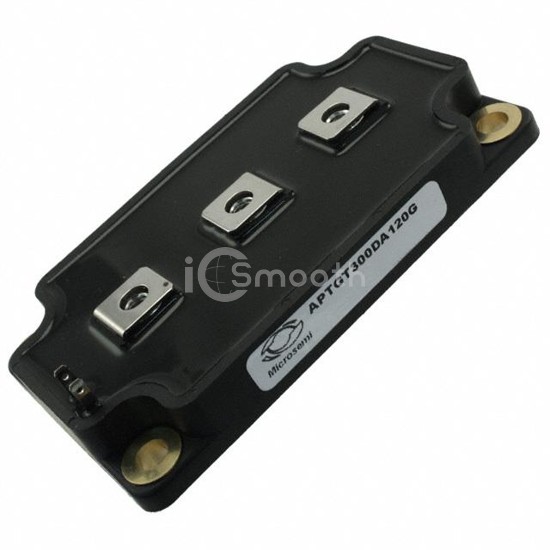

APTGT300DA120G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGT300DA120G Microchip Technology
APTGT300DA120G

Microchip Technology

IGBT MODULE 1200V 420A 1380W SP6

APTGT300DA120G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 420A 1380W SP6. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP6, current - collector (ic) (max) 420 A.

Datasheet Request a Quote

In Stock: 7,646

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)420 A
Power - Max1380 W
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 300A
Current - Collector Cutoff (Max)500 µA
Input Capacitance (Cies) @ Vce21 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP6
Supplier Device PackageSP6
