APTGT300A60TG

In Stock: 6

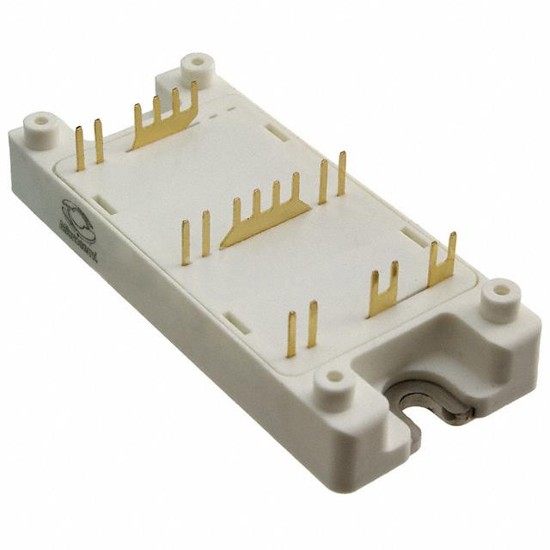

APTGT300A60TG - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGT300A60TG Microchip Technology
APTGT300A60TG

Microchip Technology

IGBT MODULE 600V 430A 935W SP4

APTGT300A60TG is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 600V 430A 935W SP4. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case SP4, current - collector (ic) (max) 430 A.

Datasheet Request a Quote

In Stock: 6

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)430 A
Power - Max935 W
Vce(on) (Max) @ Vge, Ic1.9V @ 15V, 300A
Current - Collector Cutoff (Max)350 µA
Input Capacitance (Cies) @ Vce18.4 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP4
Supplier Device PackageSP4
