APTGT150TL60G

In Stock: 4,277

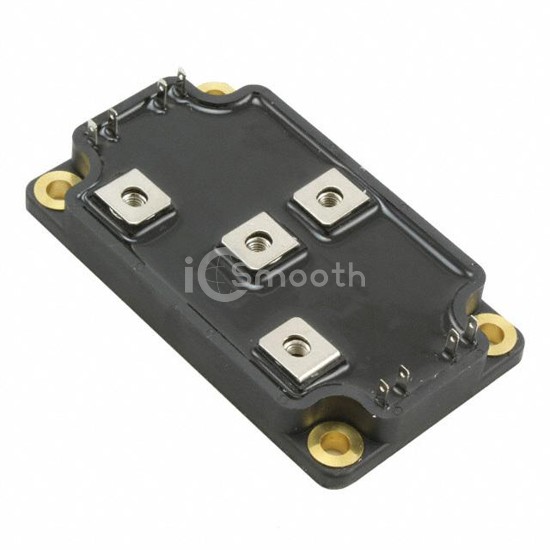

APTGT150TL60G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGT150TL60G Microchip Technology
APTGT150TL60G

Microchip Technology

IGBT MODULE 600V 200A 480W SP6

APTGT150TL60G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 600V 200A 480W SP6. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case SP6, current - collector (ic) (max) 200 A.

Datasheet Request a Quote

In Stock: 4,277

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Level Inverter
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)200 A
Power - Max480 W
Vce(on) (Max) @ Vge, Ic1.9V @ 15V, 150A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce9.2 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP6
Supplier Device PackageSP6
