APTGT150DA120G

In Stock: 1,457

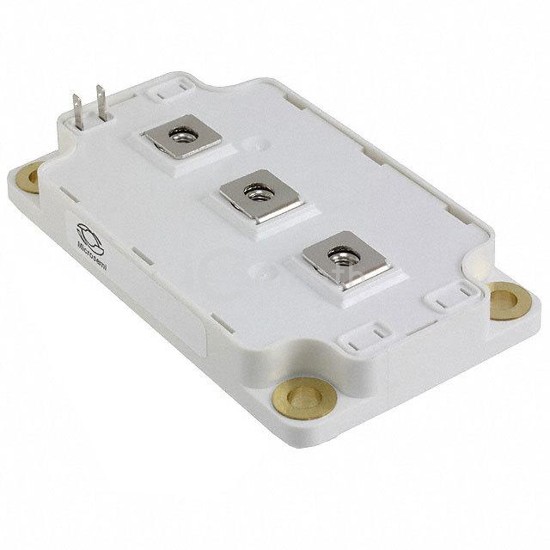

APTGT150DA120G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGT150DA120G Microchip Technology
APTGT150DA120G

Microchip Technology

IGBT MODULE 1200V 220A 690W SP6

APTGT150DA120G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 220A 690W SP6. Key specifications: mounting type Chassis Mount, package / case SP6, current - collector (ic) (max) 220 A, power - max 690 W.

Datasheet Request a Quote

In Stock: 1,457

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)220 A
Power - Max690 W
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 150A
Current - Collector Cutoff (Max)350 µA
Input Capacitance (Cies) @ Vce10.7 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP6
Supplier Device PackageSP6
