APTGT150A120T3AG

In Stock: 4,468

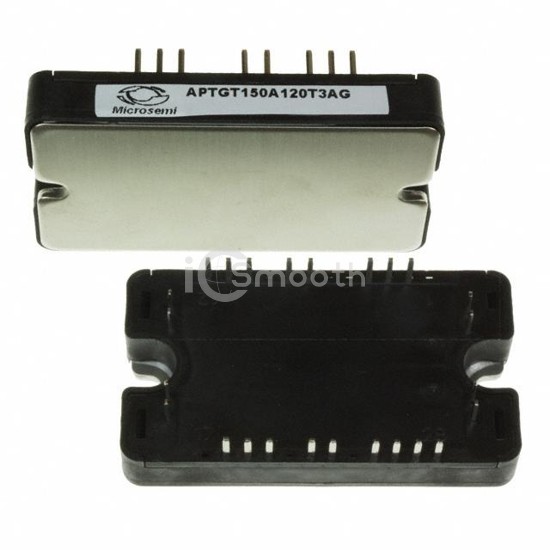

APTGT150A120T3AG - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGT150A120T3AG Microchip Technology
APTGT150A120T3AG

Microchip Technology

IGBT MODULE 1200V 220A 833W SP3

APTGT150A120T3AG is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 220A 833W SP3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP3, current - collector (ic) (max) 220 A.

Datasheet Request a Quote

In Stock: 4,468

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)220 A
Power - Max833 W
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 150A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce10.7 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP3
Supplier Device PackageSP3
