APTGT100DU170TG

In Stock: 9,046

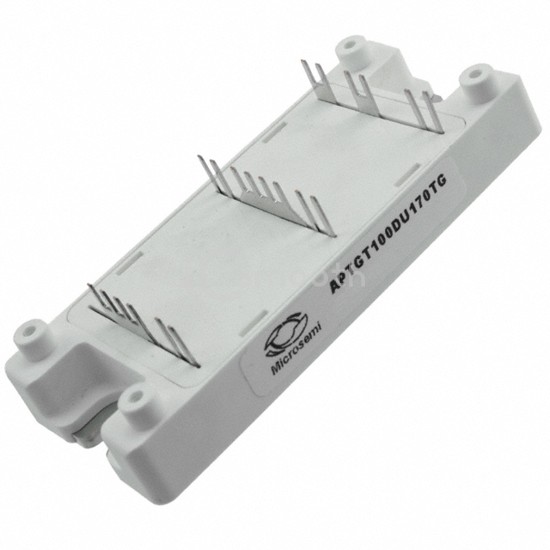

APTGT100DU170TG - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGT100DU170TG Microchip Technology
APTGT100DU170TG

Microchip Technology

IGBT MODULE 1700V 150A 560W SP4

APTGT100DU170TG is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1700V 150A 560W SP4. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP4, current - collector (ic) (max) 150 A.

Datasheet Request a Quote

In Stock: 9,046

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationDual, Common Source
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)150 A
Power - Max560 W
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 100A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce9 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP4
Supplier Device PackageSP4
