APTGT100A60T1G

In Stock: 7,270

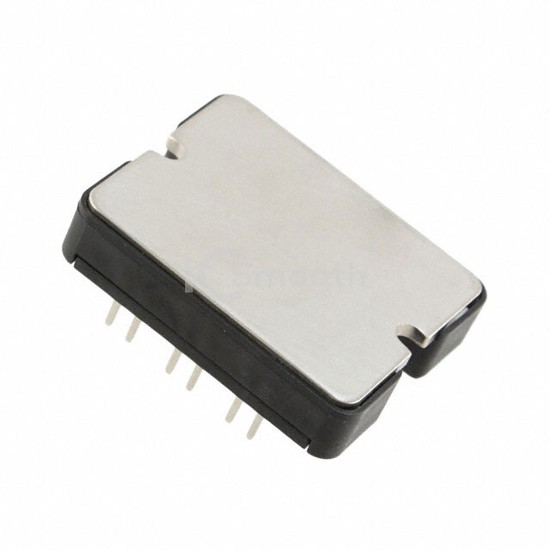

APTGT100A60T1G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGT100A60T1G Microchip Technology
APTGT100A60T1G

Microchip Technology

IGBT MODULE 600V 150A 340W SP1

APTGT100A60T1G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 600V 150A 340W SP1. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case SP1, current - collector (ic) (max) 150 A.

Datasheet Request a Quote

In Stock: 7,270

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)150 A
Power - Max340 W
Vce(on) (Max) @ Vge, Ic1.9V @ 15V, 100A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce6.1 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP1
Supplier Device PackageSP1
