APTGLQ400A120T6G

In Stock: 7,221

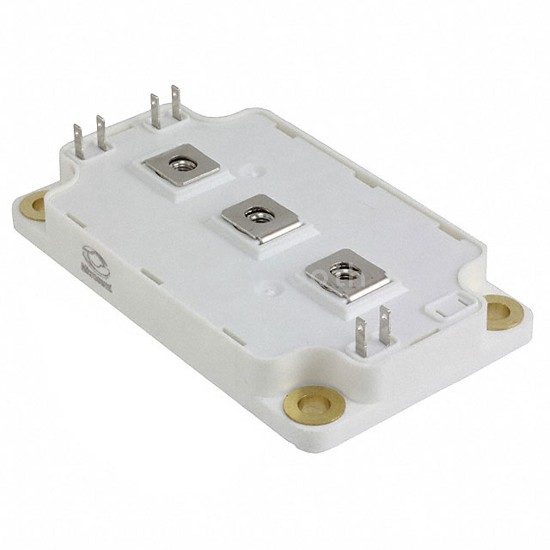

APTGLQ400A120T6G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGLQ400A120T6G Microchip Technology
APTGLQ400A120T6G

Microchip Technology

IGBT MODULE 1200V 700A 1900W SP6

APTGLQ400A120T6G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 700A 1900W SP6. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case SP6, current - collector (ic) (max) 700 A.

Datasheet Request a Quote

In Stock: 7,221

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)700 A
Power - Max1900 W
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 400A
Current - Collector Cutoff (Max)200 µA
Input Capacitance (Cies) @ Vce24.6 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseSP6
Supplier Device PackageSP6
