APTGLQ200HR120G

In Stock: 7,637

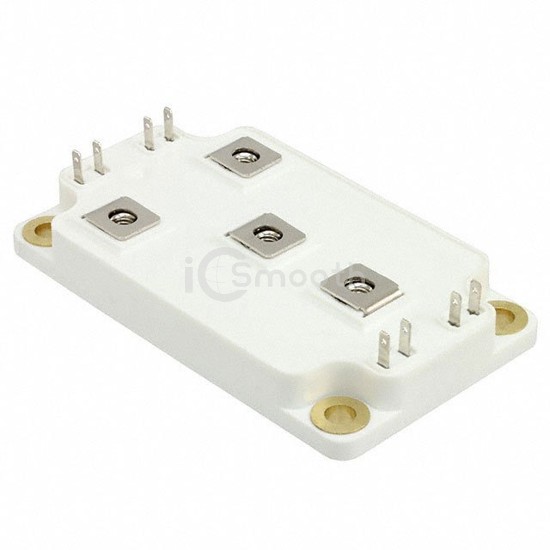

APTGLQ200HR120G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGLQ200HR120G Microchip Technology
APTGLQ200HR120G

Microchip Technology

IGBT MODULE 1200V 300A 1000W SP6

APTGLQ200HR120G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 300A 1000W SP6. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case SP6, current - collector (ic) (max) 300 A.

Datasheet Request a Quote

In Stock: 7,637

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Configuration-
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)300 A
Power - Max1000 W
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 160A
Current - Collector Cutoff (Max)200 µA
Input Capacitance (Cies) @ Vce9.2 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseSP6
Supplier Device PackageSP6
