APTGLQ100A120T3AG

In Stock: 7,742

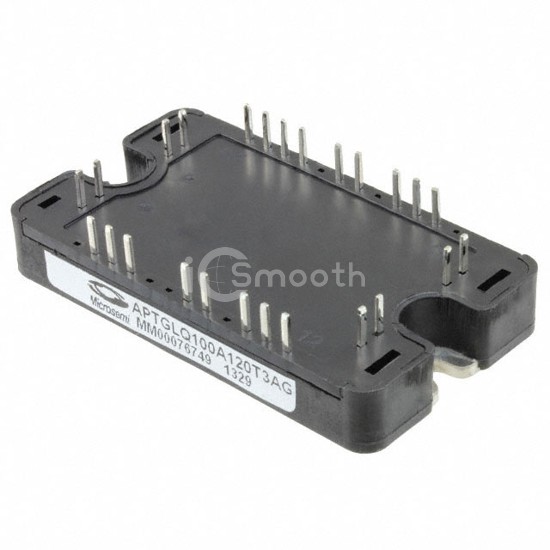

APTGLQ100A120T3AG - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGLQ100A120T3AG Microchip Technology
APTGLQ100A120T3AG

Microchip Technology

IGBT MODULE 1200V 185A 650W SP3

APTGLQ100A120T3AG is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 185A 650W SP3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case SP3, current - collector (ic) (max) 185 A.

Datasheet Request a Quote

In Stock: 7,742

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)185 A
Power - Max650 W
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 100A
Current - Collector Cutoff (Max)50 µA
Input Capacitance (Cies) @ Vce6.15 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseSP3
Supplier Device PackageSP3
