APTGL475U120D4G

In Stock: 7,107

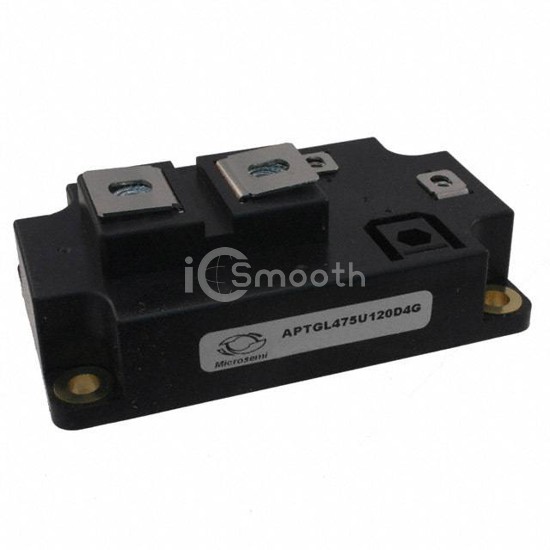

APTGL475U120D4G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGL475U120D4G Microchip Technology
APTGL475U120D4G

Microchip Technology

IGBT MODULE 1200V 610A 2082W D4

APTGL475U120D4G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 610A 2082W D4. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case D4, current - collector (ic) (max) 610 A.

Datasheet Request a Quote

In Stock: 7,107

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)610 A
Power - Max2082 W
Vce(on) (Max) @ Vge, Ic2.2V @ 15V, 400A
Current - Collector Cutoff (Max)4 mA
Input Capacitance (Cies) @ Vce24.6 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseD4
Supplier Device PackageD4
