APTGL475A120D3G

In Stock: 9,849

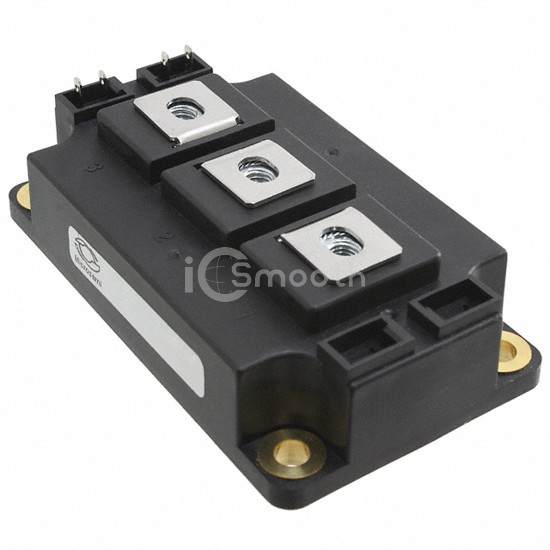

APTGL475A120D3G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGL475A120D3G Microchip Technology
APTGL475A120D3G

Microchip Technology

IGBT MODULE 1200V 610A 2080W D3

APTGL475A120D3G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 610A 2080W D3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case D-3 Module, current - collector (ic) (max) 610 A.

Datasheet Request a Quote

In Stock: 9,849

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)610 A
Power - Max2080 W
Vce(on) (Max) @ Vge, Ic2.2V @ 15V, 400A
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce24.6 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseD-3 Module
Supplier Device PackageD3
