APTGL240TL120G

In Stock: 2,234

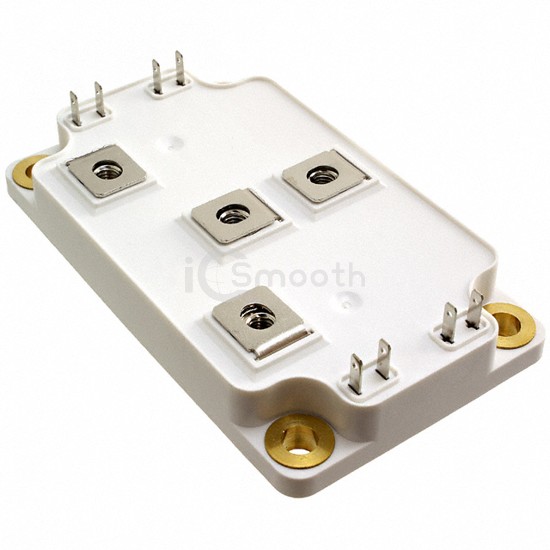

APTGL240TL120G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGL240TL120G Microchip Technology
APTGL240TL120G

Microchip Technology

IGBT MODULE 1200V 305A 1000W SP6

APTGL240TL120G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 305A 1000W SP6. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case SP6, current - collector (ic) (max) 305 A.

Datasheet Request a Quote

In Stock: 2,234

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Level Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)305 A
Power - Max1000 W
Vce(on) (Max) @ Vge, Ic2.2V @ 15V, 200A
Current - Collector Cutoff (Max)2 mA
Input Capacitance (Cies) @ Vce12.3 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP6
Supplier Device PackageSP6
