APTGF90H60T3G

In Stock: 9,941

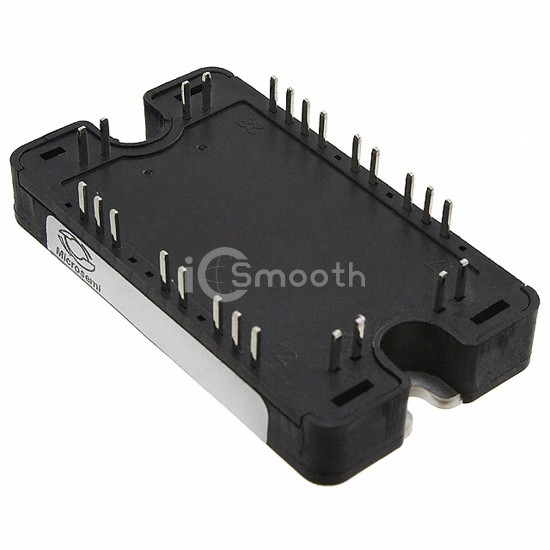

APTGF90H60T3G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGF90H60T3G Microchip Technology
APTGF90H60T3G

Microchip Technology

IGBT MODULE 600V 120A 416W SP3

APTGF90H60T3G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 600V 120A 416W SP3. Key specifications: mounting type Chassis Mount, package / case SP3, current - collector (ic) (max) 120 A, power - max 416 W.

Datasheet Request a Quote

In Stock: 9,941

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationFull Bridge Inverter
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)120 A
Power - Max416 W
Vce(on) (Max) @ Vge, Ic2.45V @ 15V, 100A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce4.4 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP3
Supplier Device PackageSP3
