APTGF75DSK120TG

In Stock: 7,956

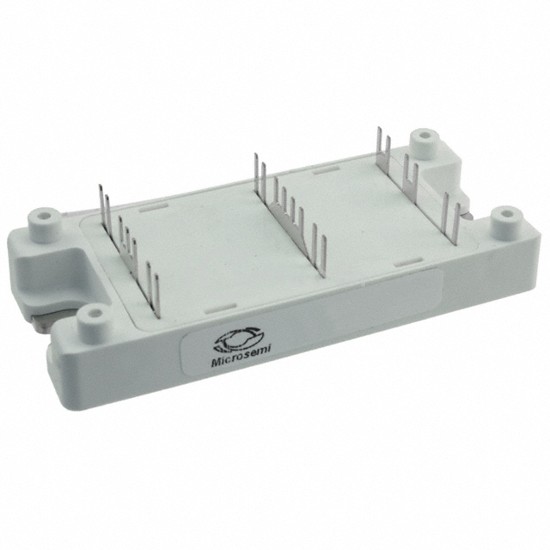

APTGF75DSK120TG - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGF75DSK120TG Microchip Technology
APTGF75DSK120TG

Microchip Technology

IGBT MODULE 1200V 100A 500W SP4

APTGF75DSK120TG is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 100A 500W SP4. Key specifications: mounting type Chassis Mount, package / case SP4, current - collector (ic) (max) 100 A, power - max 500 W.

Datasheet Request a Quote

In Stock: 7,956

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationDual, Common Source
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)100 A
Power - Max500 W
Vce(on) (Max) @ Vge, Ic3.7V @ 15V, 75A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce5.1 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP4
Supplier Device PackageSP4
