APTGF500U60D4G

In Stock: 6,121

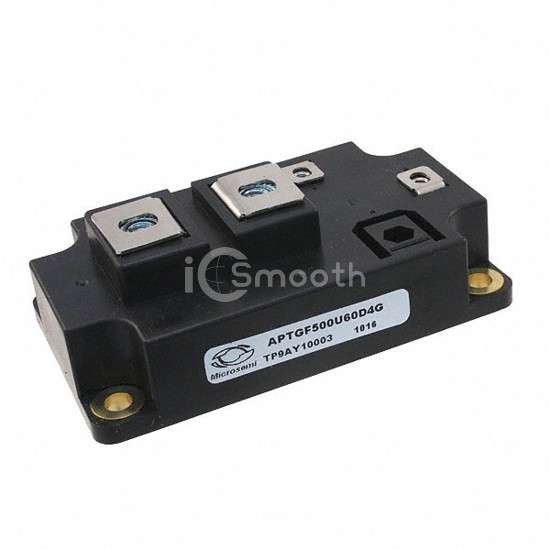

APTGF500U60D4G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGF500U60D4G Microchip Technology
APTGF500U60D4G

Microchip Technology

IGBT MODULE 600V 625A 2000W D4

APTGF500U60D4G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 600V 625A 2000W D4. Key specifications: mounting type Chassis Mount, package / case D4, current - collector (ic) (max) 625 A, power - max 2000 W.

Datasheet Request a Quote

In Stock: 6,121

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)625 A
Power - Max2000 W
Vce(on) (Max) @ Vge, Ic2.45V @ 15V, 500A
Current - Collector Cutoff (Max)500 µA
Input Capacitance (Cies) @ Vce26 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseD4
Supplier Device PackageD4
