APTGF30H60T1G

In Stock: 6,485

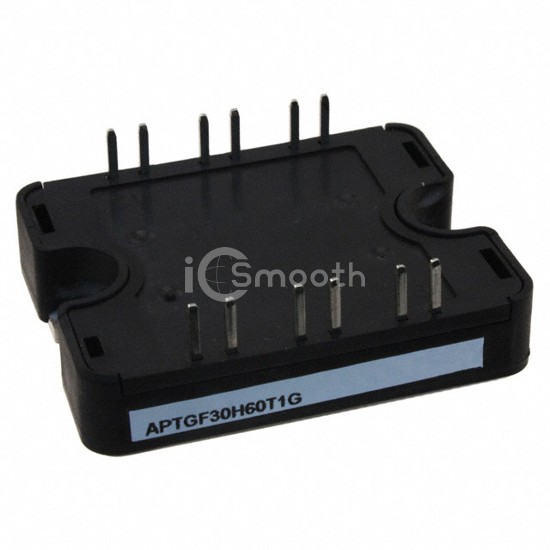

APTGF30H60T1G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGF30H60T1G Microchip Technology
APTGF30H60T1G

Microchip Technology

IGBT MODULE 600V 42A 140W SP1

APTGF30H60T1G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 600V 42A 140W SP1. Key specifications: mounting type Chassis Mount, package / case SP1, current - collector (ic) (max) 42 A, power - max 140 W.

Datasheet Request a Quote

In Stock: 6,485

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationFull Bridge Inverter
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)42 A
Power - Max140 W
Vce(on) (Max) @ Vge, Ic2.45V @ 15V, 30A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce1.35 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP1
Supplier Device PackageSP1
