APTGF25H120T1G

In Stock: 5,642

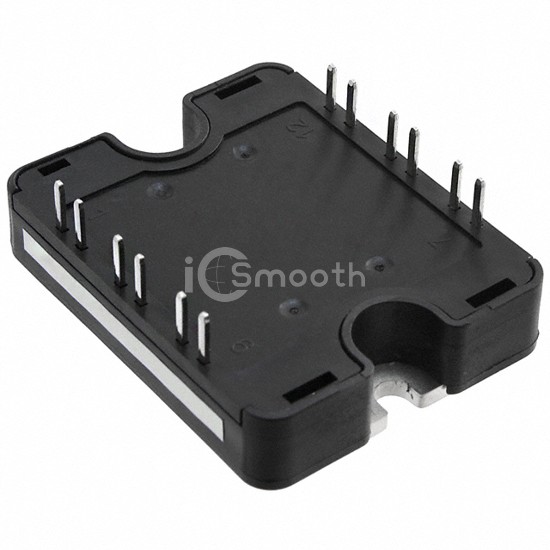

APTGF25H120T1G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGF25H120T1G Microchip Technology
APTGF25H120T1G

Microchip Technology

IGBT MODULE 1200V 40A 208W SP1

APTGF25H120T1G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 40A 208W SP1. Key specifications: mounting type Chassis Mount, package / case SP1, current - collector (ic) (max) 40 A, power - max 208 W.

Datasheet Request a Quote

In Stock: 5,642

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationFull Bridge Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)40 A
Power - Max208 W
Vce(on) (Max) @ Vge, Ic3.7V @ 15V, 25A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce1.65 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP1
Supplier Device PackageSP1
