APTGF180H60G

In Stock: 7,195

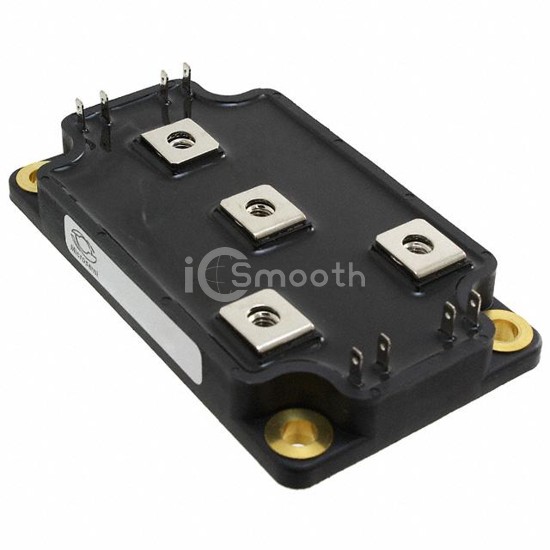

APTGF180H60G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGF180H60G Microchip Technology
APTGF180H60G

Microchip Technology

IGBT MODULE 600V 220A 833W SP6

APTGF180H60G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 600V 220A 833W SP6. Key specifications: mounting type Chassis Mount, package / case SP6, current - collector (ic) (max) 220 A, power - max 833 W.

Datasheet Request a Quote

In Stock: 7,195

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationFull Bridge Inverter
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)220 A
Power - Max833 W
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 180A
Current - Collector Cutoff (Max)300 µA
Input Capacitance (Cies) @ Vce8.6 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP6
Supplier Device PackageSP6
