APTGF150H120G

In Stock: 8,060

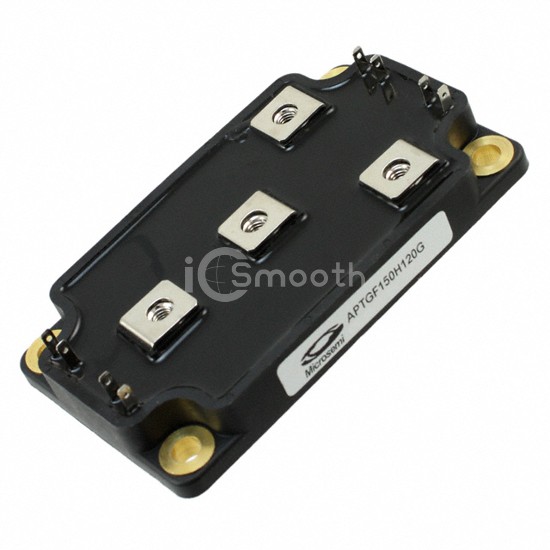

APTGF150H120G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGF150H120G Microchip Technology
APTGF150H120G

Microchip Technology

IGBT MODULE 1200V 200A 961W SP6

APTGF150H120G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 200A 961W SP6. Key specifications: mounting type Chassis Mount, package / case SP6, current - collector (ic) (max) 200 A, power - max 961 W.

Datasheet Request a Quote

In Stock: 8,060

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationFull Bridge Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)200 A
Power - Max961 W
Vce(on) (Max) @ Vge, Ic3.7V @ 15V, 150A
Current - Collector Cutoff (Max)350 µA
Input Capacitance (Cies) @ Vce10.2 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP6
Supplier Device PackageSP6
