APTGF150A120T3AG

In Stock: 1,171

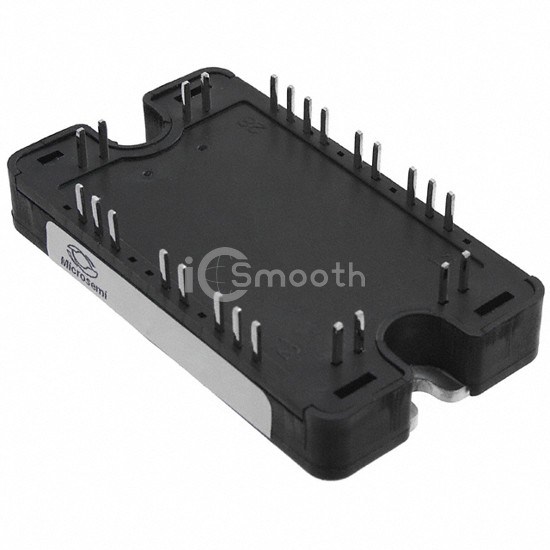

APTGF150A120T3AG - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGF150A120T3AG Microchip Technology
APTGF150A120T3AG

Microchip Technology

IGBT MODULE 1200V 210A 1041W SP3

APTGF150A120T3AG is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 210A 1041W SP3. Key specifications: mounting type Chassis Mount, package / case SP3, current - collector (ic) (max) 210 A, power - max 1041 W.

Datasheet Request a Quote

In Stock: 1,171

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)210 A
Power - Max1041 W
Vce(on) (Max) @ Vge, Ic3.7V @ 15V, 150A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce9.3 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP3
Supplier Device PackageSP3
