APTGF100DA120T1G

In Stock: 5,992

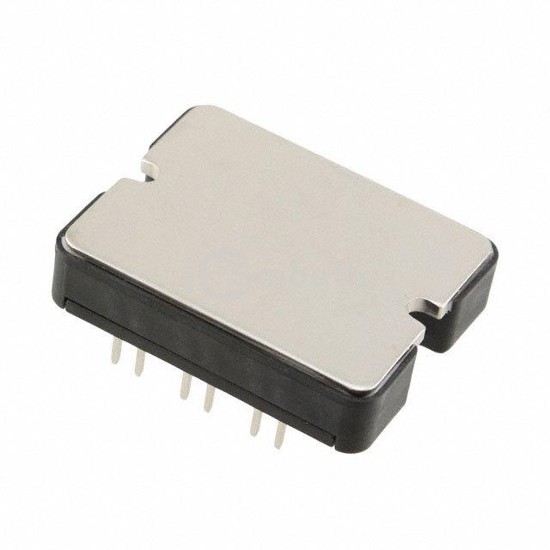

APTGF100DA120T1G - Microchip Technology - Transistors - IGBTs - Modules
REF: APTGF100DA120T1G Microchip Technology
APTGF100DA120T1G

Microchip Technology

IGBT MODULE 1200V 130A 735W SP1

APTGF100DA120T1G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 130A 735W SP1. Key specifications: mounting type Chassis Mount, package / case SP1, current - collector (ic) (max) 130 A, power - max 735 W.

Datasheet Request a Quote

In Stock: 5,992

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)130 A
Power - Max735 W
Vce(on) (Max) @ Vge, Ic3.7V @ 15V, 100A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce6.5 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP1
Supplier Device PackageSP1
