APTC60DAM18CTG

In Stock: 6,172

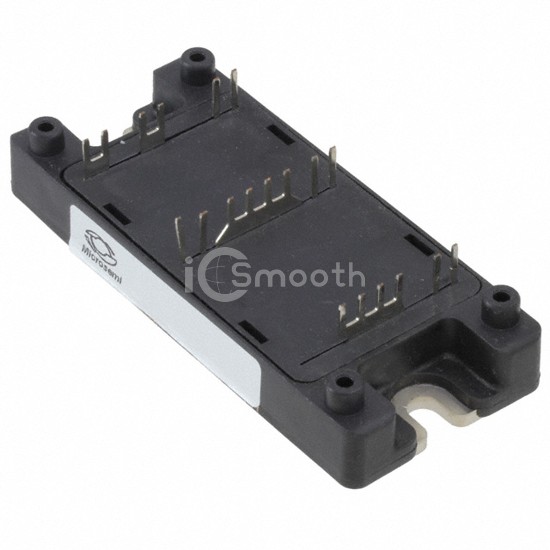

APTC60DAM18CTG - Microchip Technology - Transistors - FETs, MOSFETs - Single
REF: APTC60DAM18CTG Microchip Technology
APTC60DAM18CTG

Microchip Technology

MOSFET N-CH 600V 143A SP4

APTC60DAM18CTG is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 600V 143A SP4. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP4.

Datasheet Request a Quote

In Stock: 6,172

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C143A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs18mOhm @ 71.5A, 10V
Vgs(th) (Max) @ Id3.9V @ 4mA
Gate Charge (Qg) (Max) @ Vgs1036 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds28000 pF @ 25 V
FET Feature-
Power Dissipation (Max)833W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Supplier Device PackageSP4
Package / CaseSP4
