Name: APT6013JLL
Brand: Microchip Technology
SKU: APT6013JLL
Price: 38.70 USD
Availability: InStock

REF: APT6013JLL Microchip Technology

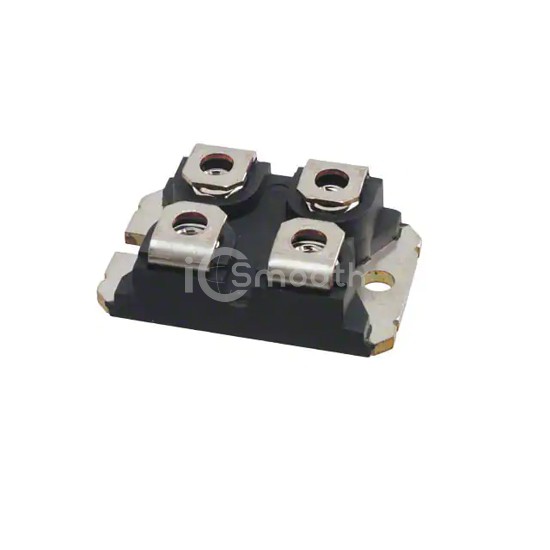

APT6013JLL

MOSFET N-CH 600V 39A ISOTOP

APT6013JLL is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 600V 39A ISOTOP. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC.

Datasheet Request a Quote

In Stock: 9,766

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	39A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	130mOhm @ 19.5A, 10V
Vgs(th) (Max) @ Id	5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs	130 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	5630 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	460W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	ISOTOP®
Package / Case	SOT-227-4, miniBLOC
