APT47GA60JD40

In Stock: 2,197

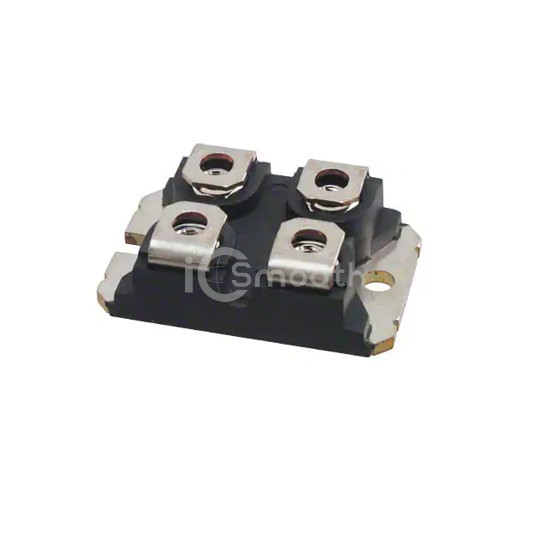

APT47GA60JD40 - Microchip Technology - Transistors - IGBTs - Modules
REF: APT47GA60JD40 Microchip Technology
APT47GA60JD40

Microchip Technology

IGBT 600V 87A 283W SOT-227

APT47GA60JD40 is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT 600V 87A 283W SOT-227. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 87 A.

Datasheet Request a Quote

In Stock: 2,197

Specifications

15 parameters
Product StatusActive
IGBT TypePT
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)87 A
Power - Max283 W
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 47A
Current - Collector Cutoff (Max)275 µA
Input Capacitance (Cies) @ Vce6.32 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageISOTOP®
