APT30M36JLL

In Stock: 9,248

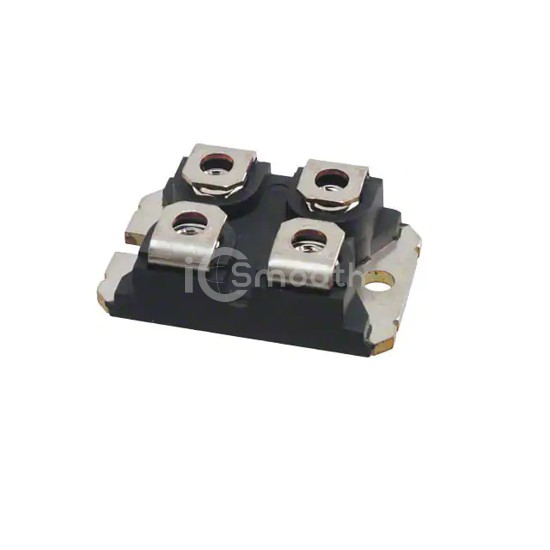

APT30M36JLL - Microchip Technology - Transistors - FETs, MOSFETs - Single
REF: APT30M36JLL Microchip Technology
APT30M36JLL

Microchip Technology

MOSFET N-CH 300V 76A ISOTOP

APT30M36JLL is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 300V 76A ISOTOP. Key specifications: mounting type Chassis Mount, package / case SOT-227-4, miniBLOC.

Datasheet Request a Quote

In Stock: 9,248

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)300 V
Current - Continuous Drain (Id) @ 25°C76A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs36mOhm @ 38A, 10V
Vgs(th) (Max) @ Id5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs115 nC @ 10 V
Vgs (Max)-
Input Capacitance (Ciss) (Max) @ Vds6480 pF @ 25 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-
Mounting TypeChassis Mount
Supplier Device PackageISOTOP®
Package / CaseSOT-227-4, miniBLOC
