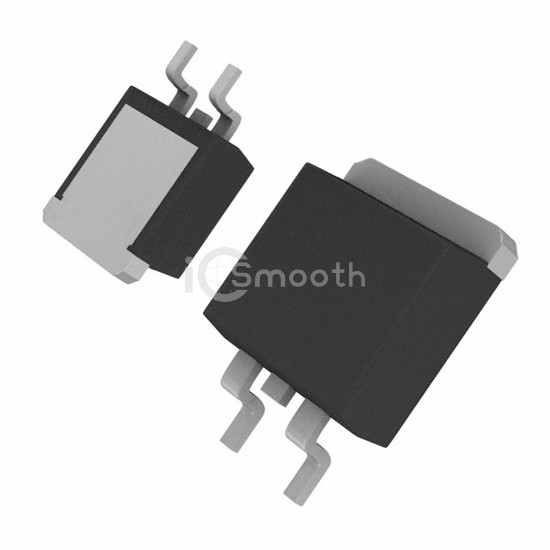

APT14M100S

MOSFET N-CH 1000V 14A D3PAK

APT14M100S is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 1000V 14A D3PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 7,343

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1000 V
Current - Continuous Drain (Id) @ 25°C	14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	880mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	120 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	3965 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	500W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D3Pak
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
