APT12057JFLL

In Stock: 5,135

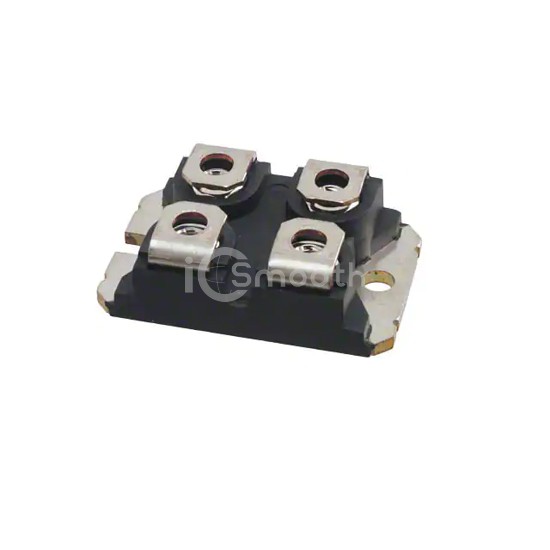

APT12057JFLL - Microchip Technology - Transistors - FETs, MOSFETs - Single
REF: APT12057JFLL Microchip Technology
APT12057JFLL

Microchip Technology

MOSFET N-CH 1200V 19A ISOTOP

APT12057JFLL is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 1200V 19A ISOTOP. Key specifications: mounting type Chassis Mount, package / case SOT-227-4, miniBLOC.

Datasheet Request a Quote

In Stock: 5,135

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C19A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs570mOhm @ 9.5A, 10V
Vgs(th) (Max) @ Id5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs185 nC @ 10 V
Vgs (Max)-
Input Capacitance (Ciss) (Max) @ Vds5155 pF @ 25 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-
Mounting TypeChassis Mount
Supplier Device PackageISOTOP®
Package / CaseSOT-227-4, miniBLOC
