Name: APT106N60LC6
Brand: Microchip Technology
SKU: APT106N60LC6
Price: 21.74 USD
Availability: InStock

REF: APT106N60LC6 Microchip Technology

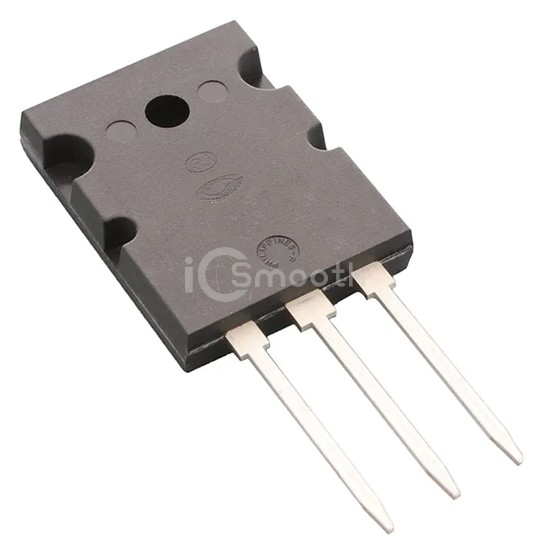

APT106N60LC6

Microchip Technology

MOSFET N-CH 600V 106A TO264

APT106N60LC6 is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 600V 106A TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA.

Datasheet Request a Quote

In Stock: 50

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	106A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	35mOhm @ 53A, 10V
Vgs(th) (Max) @ Id	3.5V @ 3.4mA
Gate Charge (Qg) (Max) @ Vgs	308 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8390 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	833W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-264 (L)
Package / Case	TO-264-3, TO-264AA
