Name: 2N6661
Brand: Microchip Technology
SKU: 2N6661
Price: 16.57 USD
Availability: InStock

REF: 2N6661 Microchip Technology

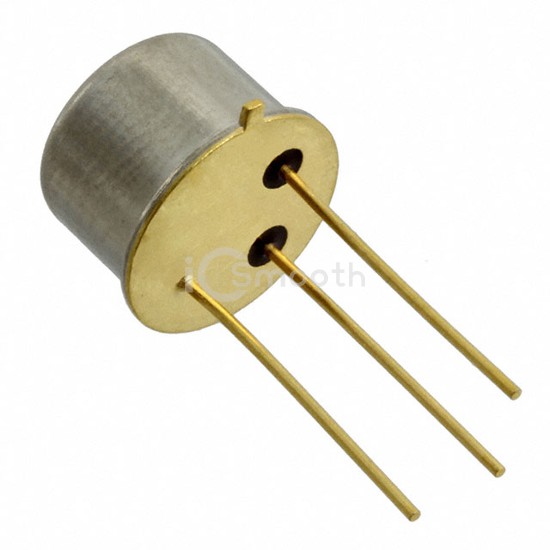

2N6661

MOSFET N-CH 90V 350MA TO39

2N6661 is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 90V 350MA TO39. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-205AD, TO-39-3 Metal Can.

Datasheet Request a Quote

In Stock: 9,933

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	90 V
Current - Continuous Drain (Id) @ 25°C	350mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	4Ohm @ 1A, 10V
Vgs(th) (Max) @ Id	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	50 pF @ 24 V
FET Feature	-
Power Dissipation (Max)	6.25W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-39
Package / Case	TO-205AD, TO-39-3 Metal Can
