Name: TBS22M-TP
Brand: Micro Commercial Co
SKU: TBS22M-TP
Price: 0.58 USD
Availability: InStock

REF: TBS22M-TP Micro Commercial Co

TBS22M-TP

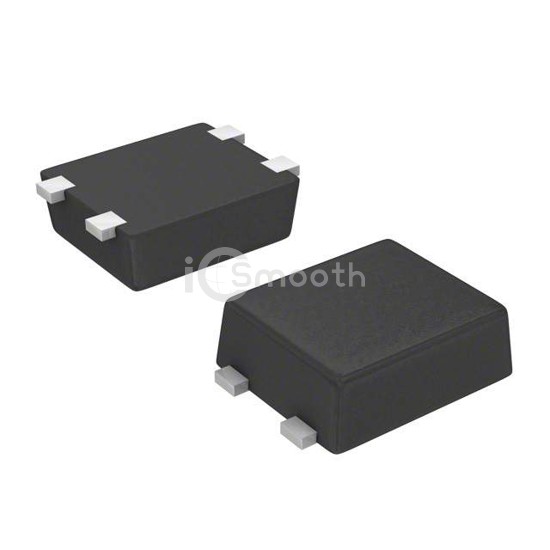

BRIDGE RECT 1PHASE 1KV 2.2A 4TBS

TBS22M-TP is a Diodes - Bridge Rectifiers manufactured by Micro Commercial Co. BRIDGE RECT 1PHASE 1KV 2.2A 4TBS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-SMD, Flat Leads.

Datasheet Request a Quote

In Stock: 1,310

Tiered Pricing USD

1+ $0.5800 —

10+ $0.3580 -38%

100+ $0.2285 -61%

500+ $0.1724 -70%

1,000+ $0.1543 -73% BEST

Specifications

11 parameters

Product Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1 kV
Current - Average Rectified (Io)	2.2 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 2 A

Current - Reverse Leakage @ Vr	5 µA @ 1000 V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Flat Leads
Supplier Device Package	4-TBS
