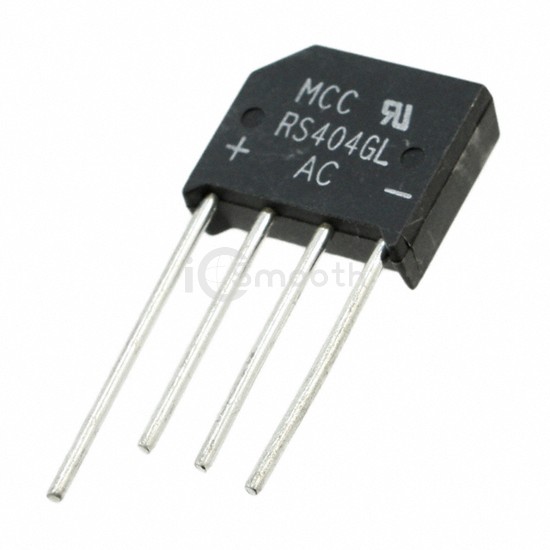

Name: RS404GL-BP
Brand: Micro Commercial Co
SKU: RS404GL-BP
Price: 1.50 USD
Availability: InStock

REF: RS404GL-BP Micro Commercial Co

RS404GL-BP

BRIDGE RECT 1PHASE 400V 4A RS-4L

RS404GL-BP is a Diodes - Bridge Rectifiers manufactured by Micro Commercial Co. BRIDGE RECT 1PHASE 400V 4A RS-4L. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case 4-SIP, RS-4L.

Datasheet Request a Quote

In Stock: 447

Tiered Pricing USD

1+ $1.5000 —

10+ $0.9470 -37%

100+ $0.6298 -58%

500+ $0.4938 -67%

1,000+ $0.4501 -70%

2,000+ $0.4133 -72%

6,000+ $0.3665 -76%

10,000+ $0.3523 -77% BEST

Specifications

11 parameters

Product Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	400 V
Current - Average Rectified (Io)	4 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 4 A

Current - Reverse Leakage @ Vr	5 µA @ 400 V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	4-SIP, RS-4L
Supplier Device Package	RS-4L
