Name: MCP20N70-BP
Brand: Micro Commercial Co
SKU: MCP20N70-BP
Availability: InStock

REF: MCP20N70-BP Micro Commercial Co

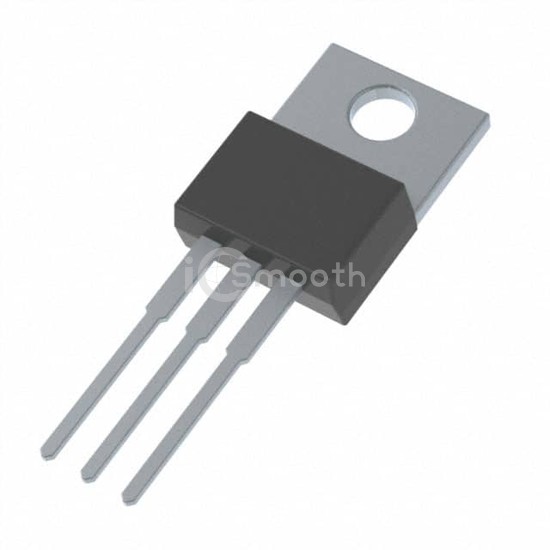

MCP20N70-BP

MOSFET N-CH

MCP20N70-BP is a Transistors - FETs, MOSFETs - Single manufactured by Micro Commercial Co. MOSFET N-CH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 9,185

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	700 V
Current - Continuous Drain (Id) @ 25°C	20A
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	210mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	46 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2328 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	151W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB
Package / Case	TO-220-3
