Name: MCP100N10Y-TP
Brand: Micro Commercial Co
SKU: MCP100N10Y-TP
Availability: InStock

REF: MCP100N10Y-TP Micro Commercial Co

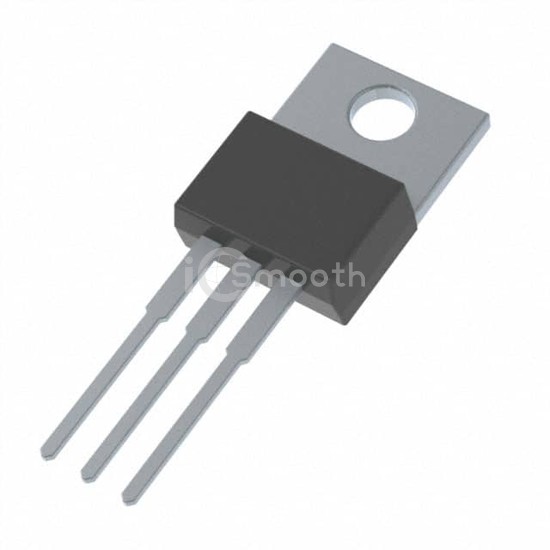

MCP100N10Y-TP

MOSFET N-CH 100V 100A TO220AB

MCP100N10Y-TP is a Transistors - FETs, MOSFETs - Single manufactured by Micro Commercial Co. MOSFET N-CH 100V 100A TO220AB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 8,745

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	100A
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	122 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6897 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	147W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB(H)
Package / Case	TO-220-3
