Name: MCM1208-TP
Brand: Micro Commercial Co
SKU: MCM1208-TP
Price: 0.66 USD
Availability: InStock

REF: MCM1208-TP Micro Commercial Co

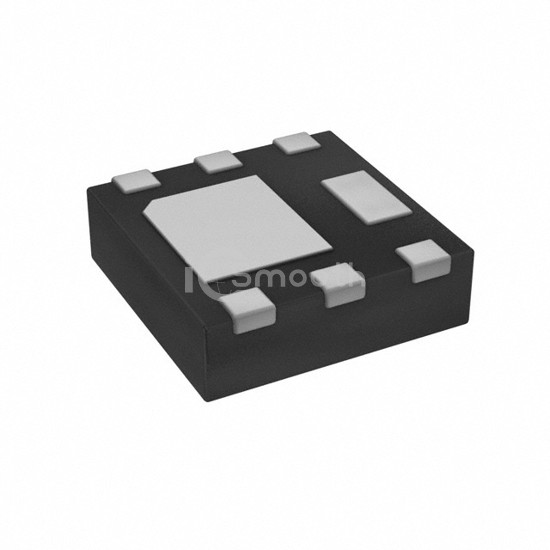

MCM1208-TP

MOSFET P-CH 12V 8A DFN2020-6J

MCM1208-TP is a Transistors - FETs, MOSFETs - Single manufactured by Micro Commercial Co. MOSFET P-CH 12V 8A DFN2020-6J. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 795

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	28mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	21 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1275 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN2020-6J
Package / Case	6-WDFN Exposed Pad
