MCG55P02A-TP

In Stock: 11,980

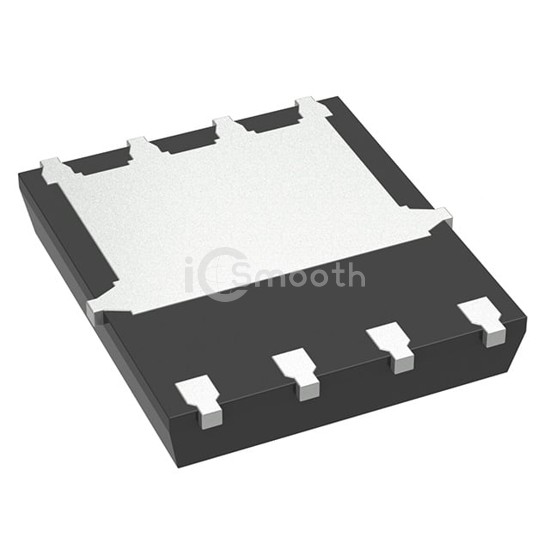

MCG55P02A-TP - Micro Commercial Co - Transistors - FETs, MOSFETs - Single
REF: MCG55P02A-TP Micro Commercial Co
MCG55P02A-TP

Micro Commercial Co

P-CHANNEL MOSFET, DFN3333

MCG55P02A-TP is a Transistors - FETs, MOSFETs - Single manufactured by Micro Commercial Co. P-CHANNEL MOSFET, DFN3333. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-VDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 11,980

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C55A
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs8.3mOhm @ 15A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs149 nC @ 10 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds6358 pF @ 10 V
FET Feature-
Power Dissipation (Max)3.2W (Ta), 38W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN3333
Package / Case8-VDFN Exposed Pad
