MCAC25P10YHE3-TP

In Stock: 7,081

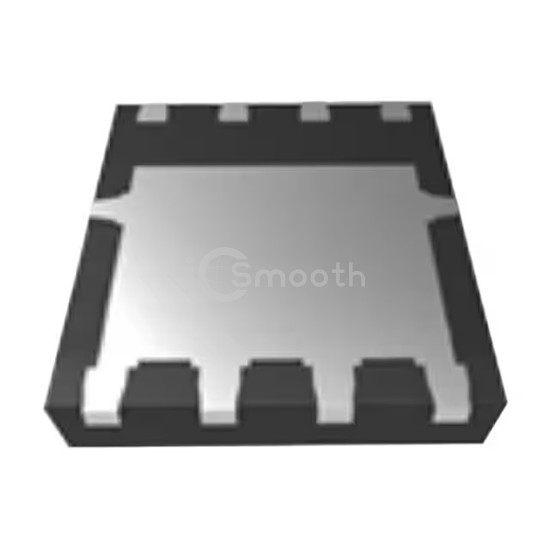

MCAC25P10YHE3-TP - Micro Commercial Co - Transistors - FETs, MOSFETs - Single
REF: MCAC25P10YHE3-TP Micro Commercial Co
MCAC25P10YHE3-TP

Micro Commercial Co

P-CHANNEL MOSFET, DFN5060

MCAC25P10YHE3-TP is a Transistors - FETs, MOSFETs - Single manufactured by Micro Commercial Co. P-CHANNEL MOSFET, DFN5060. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 7,081

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C25A
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs55mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs40 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2200 pF @ 50 V
FET Feature-
Power Dissipation (Max)70W (Tj)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN5060
Package / Case8-PowerTDFN
