MCAC10H03-TP

In Stock: 5,319

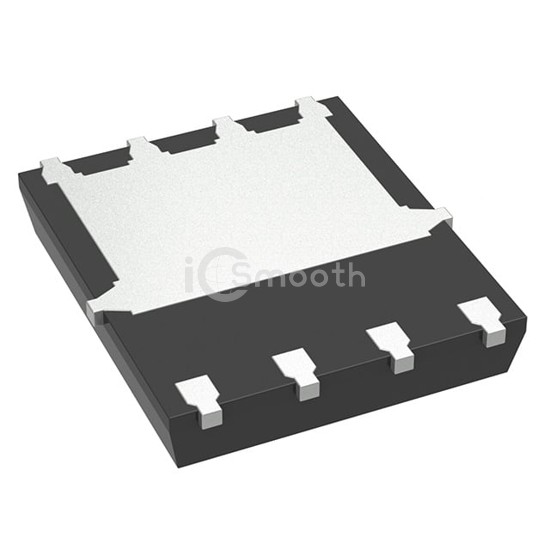

MCAC10H03-TP - Micro Commercial Co - Transistors - FETs, MOSFETs - Single
REF: MCAC10H03-TP Micro Commercial Co
MCAC10H03-TP

Micro Commercial Co

MOSFET N-CH 30V 100A DFN5060-8

MCAC10H03-TP is a Transistors - FETs, MOSFETs - Single manufactured by Micro Commercial Co. MOSFET N-CH 30V 100A DFN5060-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 5,319

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C100A (Tj)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs38 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5000 pF @ 15 V
FET Feature-
Power Dissipation (Max)2W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN5060-8
Package / Case8-PowerVDFN
