Name: LMB8S-TP
Brand: Micro Commercial Co
SKU: LMB8S-TP
Price: 0.61 USD
Availability: InStock

REF: LMB8S-TP Micro Commercial Co

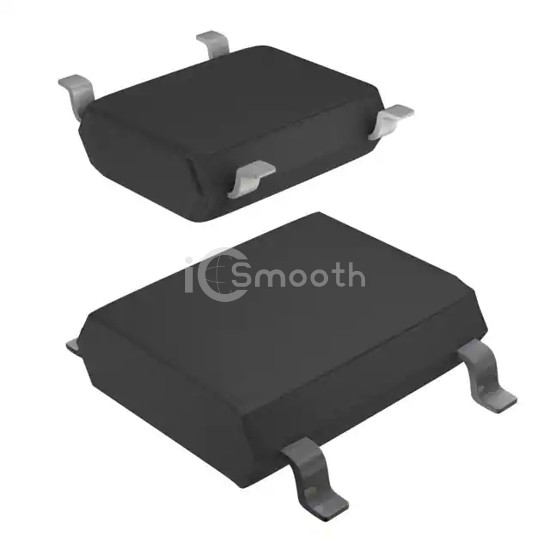

LMB8S-TP

BRIDGE RECT 1P 800V 1A LMBS-1

LMB8S-TP is a Diodes - Bridge Rectifiers manufactured by Micro Commercial Co. BRIDGE RECT 1P 800V 1A LMBS-1. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 13,748

Tiered Pricing USD

1+ $0.6100 —

10+ $0.3750 -39%

100+ $0.2399 -61%

500+ $0.1813 -70%

1,000+ $0.1624 -73%

2,000+ $0.1465 -76% BEST

Specifications

11 parameters

Product Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	800 V
Current - Average Rectified (Io)	1 A
Voltage - Forward (Vf) (Max) @ If	950 mV @ 400 mA

Current - Reverse Leakage @ Vr	5 µA @ 800 V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	LMBS-1
