Name: GBPC3506-BP
Brand: Micro Commercial Co
SKU: GBPC3506-BP
Price: 2.59 USD
Availability: InStock

REF: GBPC3506-BP Micro Commercial Co

GBPC3506-BP

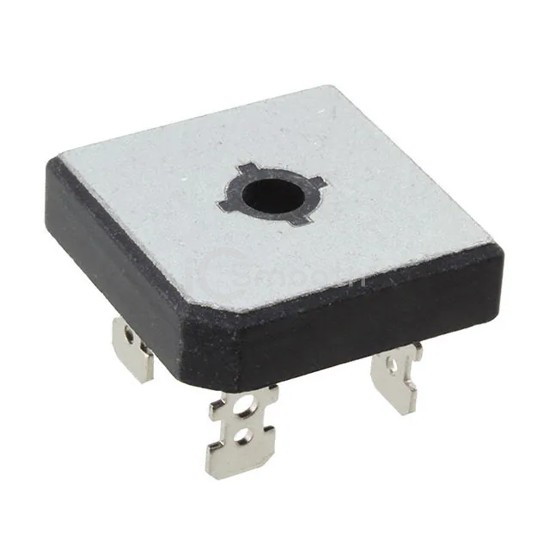

BRIDGE RECT 1PHASE 600V 35A GBPC

GBPC3506-BP is a Diodes - Bridge Rectifiers manufactured by Micro Commercial Co. BRIDGE RECT 1PHASE 600V 35A GBPC. Key specifications: mounting type QC Terminal, operating temperature -55°C ~ 150°C (TJ), package / case 4-Square, GBPC.

Datasheet Request a Quote

In Stock: 383

Tiered Pricing USD

1+ $2.5900 —

10+ $1.6710 -35%

400+ $0.9460 -63%

800+ $0.8696 -66%

1,200+ $0.8306 -68%

2,000+ $0.7869 -70%

5,200+ $0.7500 -71% BEST

Specifications

11 parameters

Product Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	600 V
Current - Average Rectified (Io)	35 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 17.5 A

Current - Reverse Leakage @ Vr	5 µA @ 600 V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	QC Terminal
Package / Case	4-Square, GBPC
Supplier Device Package	GBPC
