Name: GBJ2504-BP
Brand: Micro Commercial Co
SKU: GBJ2504-BP
Price: 2.53 USD
Availability: InStock

REF: GBJ2504-BP Micro Commercial Co

GBJ2504-BP

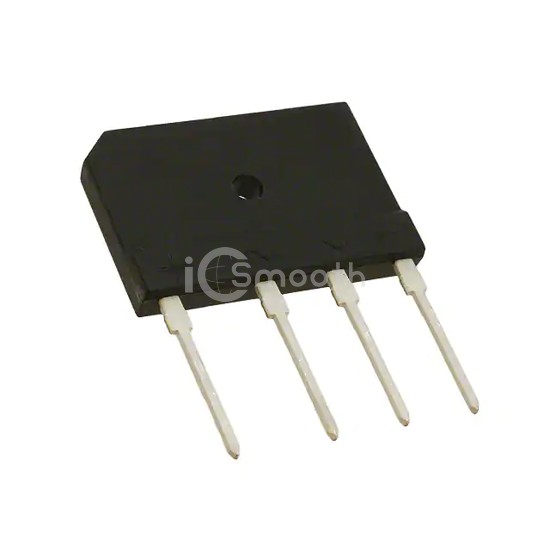

BRIDGE RECT 1PHASE 400V 25A GBJ

GBJ2504-BP is a Diodes - Bridge Rectifiers manufactured by Micro Commercial Co. BRIDGE RECT 1PHASE 400V 25A GBJ. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case 4-SIP, GBJ.

Datasheet Request a Quote

In Stock: 11,814

Tiered Pricing USD

1+ $2.5300 —

15+ $1.5153 -40%

105+ $1.1062 -56%

510+ $0.8921 -65%

1,005+ $0.8232 -67%

2,010+ $0.7638 -70%

5,010+ $0.7250 -71% BEST

Specifications

11 parameters

Product Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	400 V
Current - Average Rectified (Io)	25 A
Voltage - Forward (Vf) (Max) @ If	1.05 V @ 12.5 A

Current - Reverse Leakage @ Vr	10 µA @ 400 V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	4-SIP, GBJ
Supplier Device Package	GBJ
